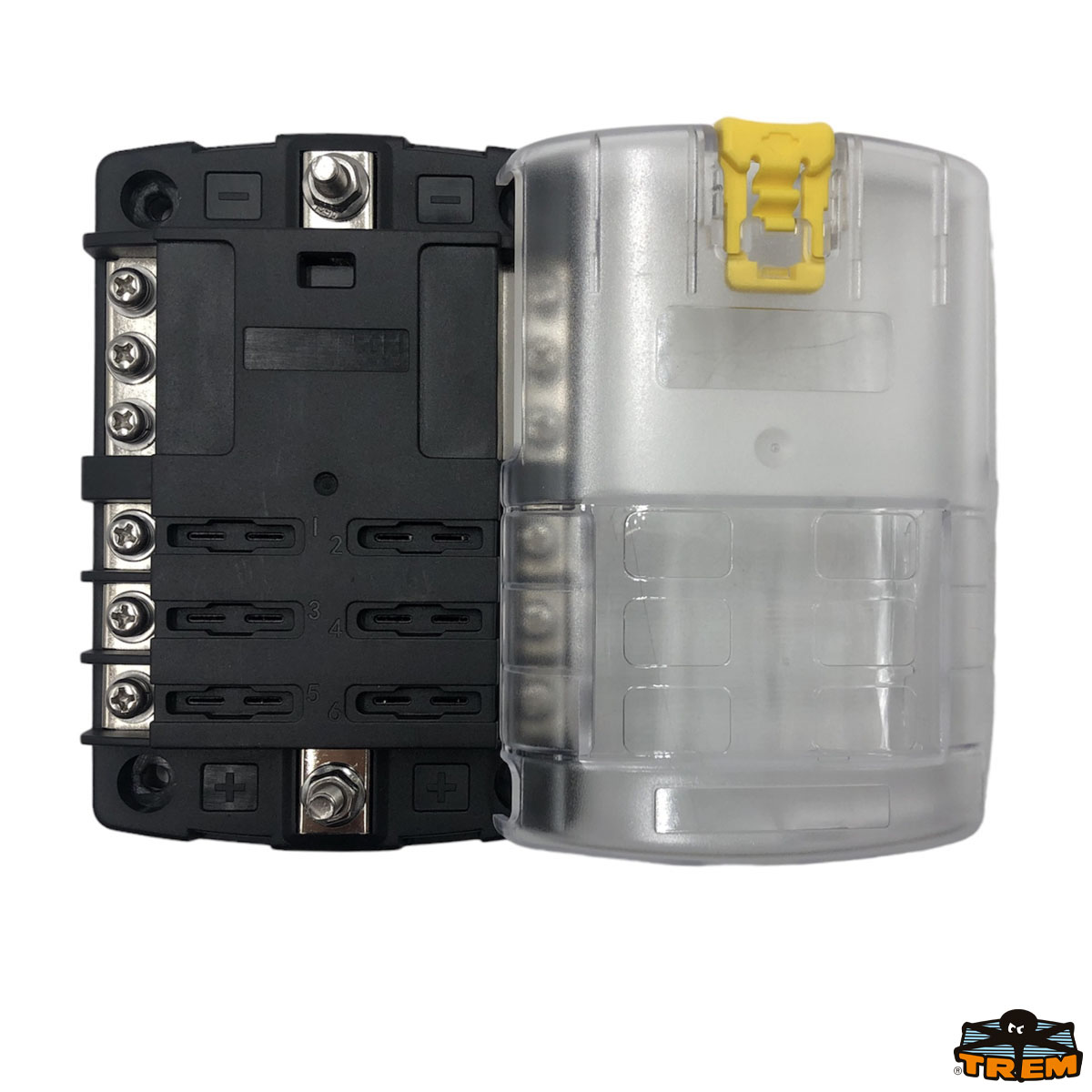

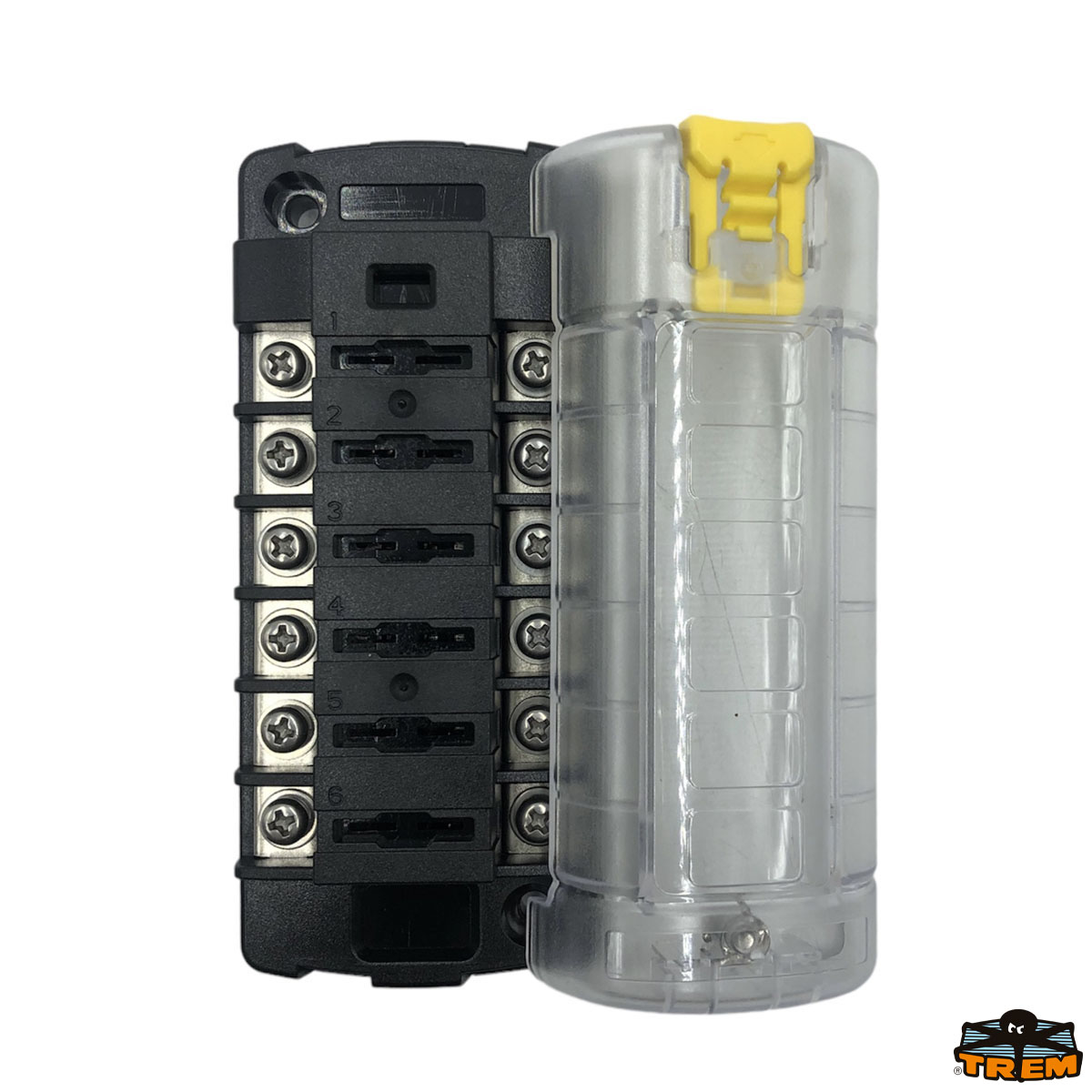

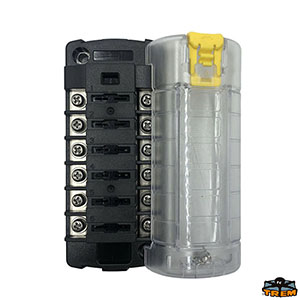

Common source blade fuse block
Silver-plated phosphor bronze connections. It fit regular lamellar fuses. Admissible voltage: 9/32V. Total max amperage of the box 100A. Max amperage for each fuse 30 A. Consolidates branch circuits and in-line fuses.
Positive distribution bus with terminal M5. Can be used for 24-hour circuits incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses. Format Labels for circuit identification. Tin-plated copper buses and fuse clips. Accepts ring or snap fork type terminals. Accepts fast acting blade fuses. Fuses sold separately
Positive distribution bus with terminal M5. Can be used for 24-hour circuits incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses. Format Labels for circuit identification. Tin-plated copper buses and fuse clips. Accepts ring or snap fork type terminals. Accepts fast acting blade fuses. Fuses sold separately
9-32V NEW
| Part number | Base unit/availability | Features | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L0606110
1 pz |
1 pz |
Sedi fusibili 6 |
Contatti (-) 6 |
(-) Comune 1 |
(+) Comune 1 |
Dimensioni mm A 110x B 85 x C40 |
||||||||||||||||
| L0612165
1 pz |
1 pz |
Sedi fusibili 12 |
Contatti (-) 12 |
(-) Comune 1 |
(+) Comune 1 |
Dimensioni mm A 165x B 85 x C40 |
||||||||||||||||
| L0606130
1 pz |
1 pz |
Sedi fusibili 6 |
Contatti (-) 6 |
(-) Comune 1 |
(+) Comune 1 |
Dimensioni mm A 130x B 55 x C40 |
||||||||||||||||
