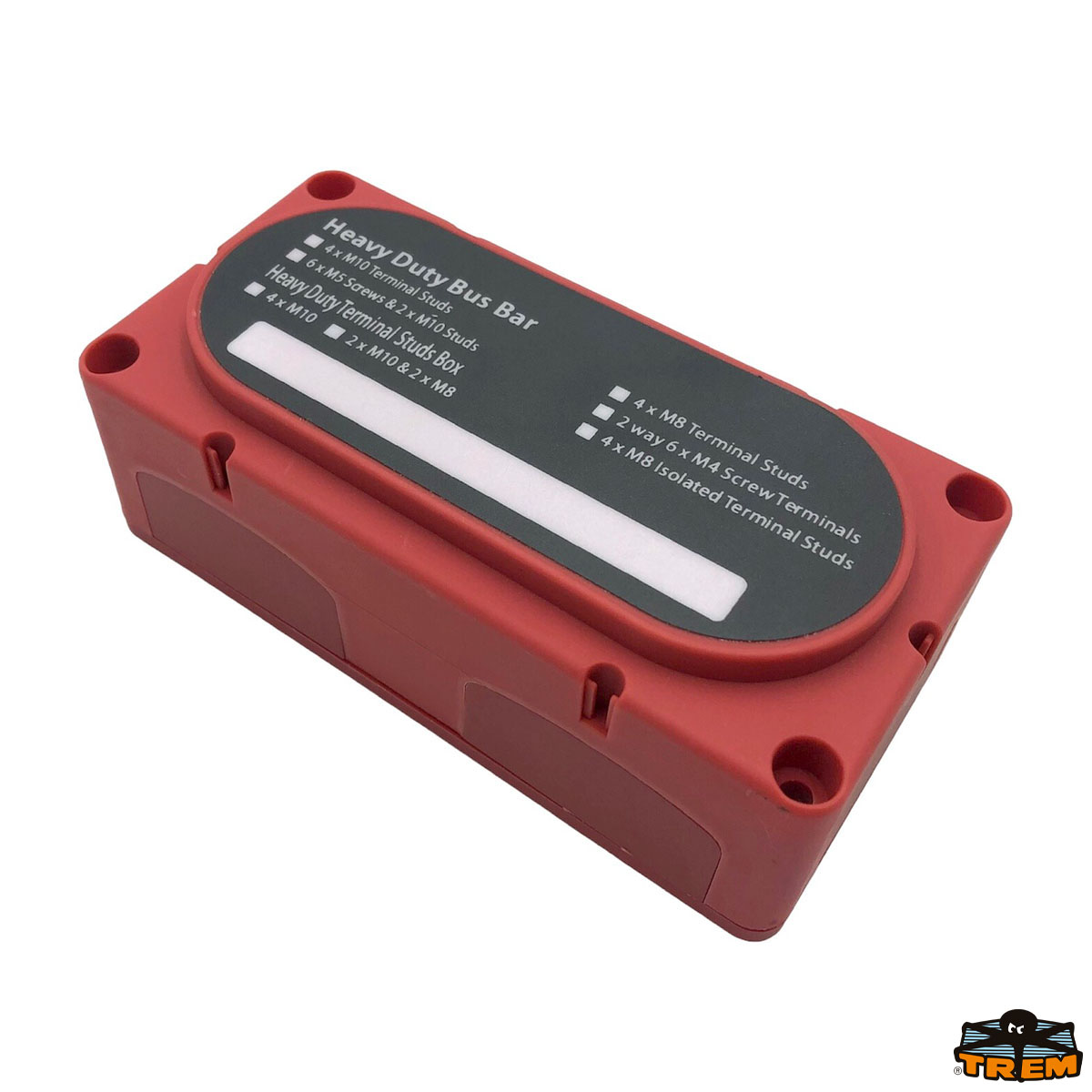

Busbar for high amperage terminals

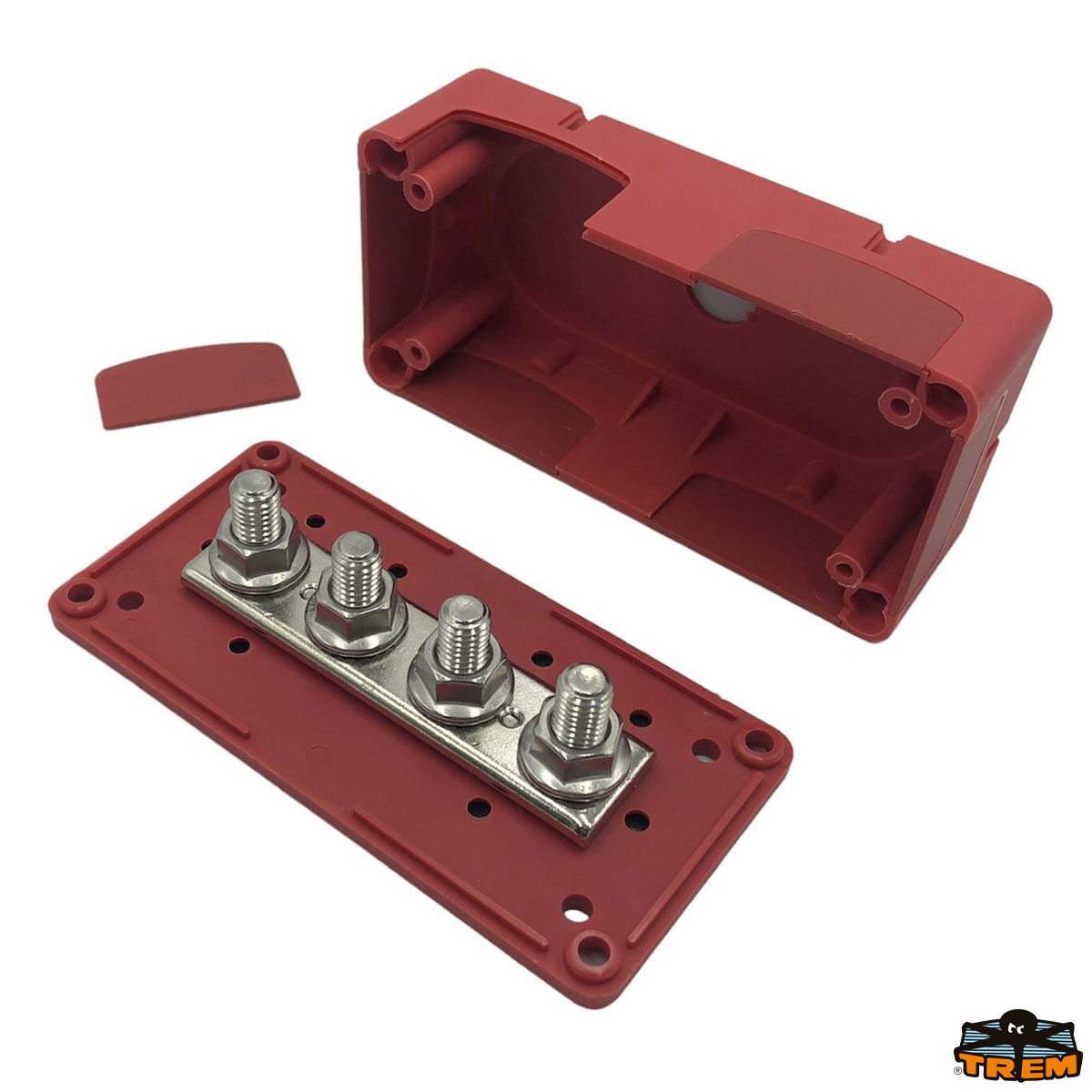

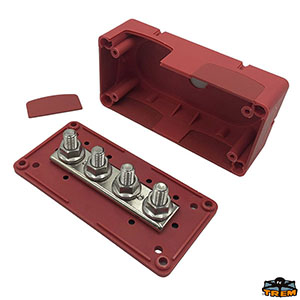

Highest amperage rated bus bar (300A) with M10 terminal studs. Module box design for easy wiring configurations. Glass Fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability. Removable windows for unobstructed wiring. Blank write-on space on the top allows easy labeling for each branc. Specification: Base & Cover Material | Nylon, Glass Fiber reinforced. Bus Material | Brass, Nickel plated. Max Operating Voltage | DC 48V. Max Continuous Amp 300A.
NEW
| Part number | Base unit/availability | Features | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L0648138
1 pz |
1 pz |
Contatti 4 |

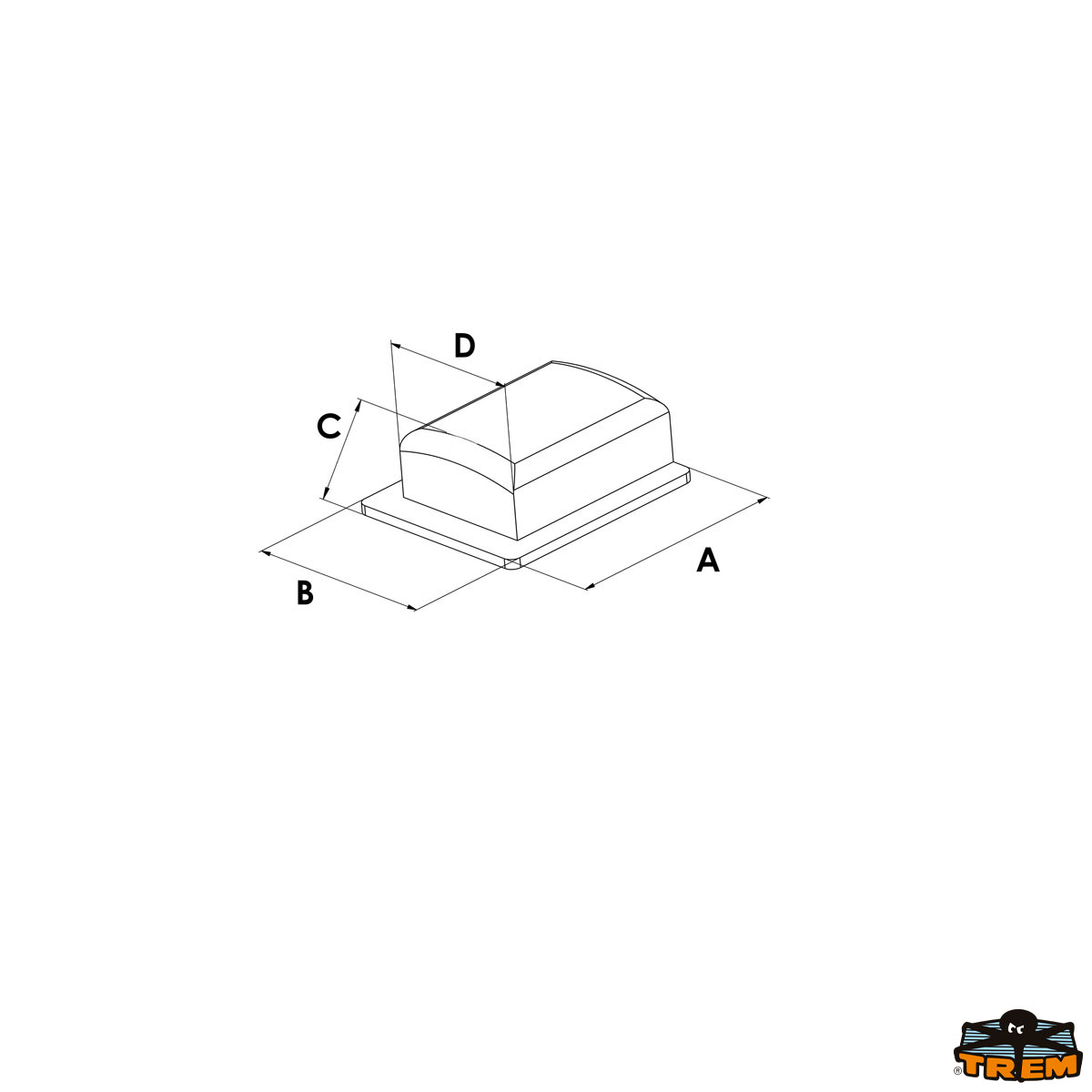

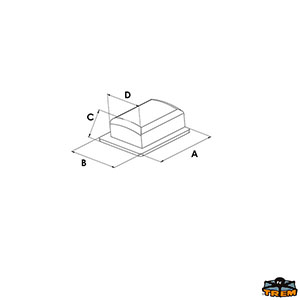

Dimensioni mm A138x B78 x C50 |
Interasse mm 73 x 70 |
Peso kg 0,350 |
|||||||||||||||||
